Auto Lift AL2-9K-FX 2-Post Floor Plate Car Lift 4082.3kg
Description
The Auto Lift AL2-9K-FX delivers heavy-duty lifting performance with a symmetric layout and a robust 4082.3 kg capacity. Built for reliable service, it features high-strength cable equalization, heavy-duty leaf chains, steel pulleys, and integrated rubber door guards to safeguard vehicles during operation.
A space-efficient footprint is achieved through front-side power unit mounting and internal hydraulic hose routing with integrated guards. Low-profile drop-in swivel pads provide 3.8 cm of height adjustment to easily accommodate various vehicle chassis configurations.
Key Features
| Brand | Auto Lift |
| Model | AL2-9K-FX |
| Product Type | Two-Post Car Lift |
| Lifting Capacity | 4082.3 kg |
| Overall Height | 284.2 cm |
| Overall Width (with Power Unit) | 341.9 cm |
| Max Lift Height | 182.9 cm |
| Width Between Columns | 280.4 cm |
| Drive-Thru Clearance | 259.1 cm |
| Low Pad Height | 10.2 cm |
| Lifting Speed | 50 seconds |
| Lift Design | Symmetric |
| Floor Configuration | Floor Plate |
| Arm Reach (Min - Max) | 78.7 cm – 114.3 cm |
| Column Dimensions | 18.4 cm x 27.6 cm |
| Column Steel Thickness | 5 mm |
| Carriage Steel Thickness | 5 mm |
| Arm Steel Thickness | 6 mm |
| Equalizing Cable Diameter | 3/8″ |
| Power Requirement | 220V, 20A, Single Phase |
| Product Weight | 598.7 kg |
| Shipping Weight | 573.8 kg |
Highlights
- Symmetric design with 9,000 lbs. lifting capacity
- Heavy-duty leaf chain, steel pulleys, and high-strength cable equalization system

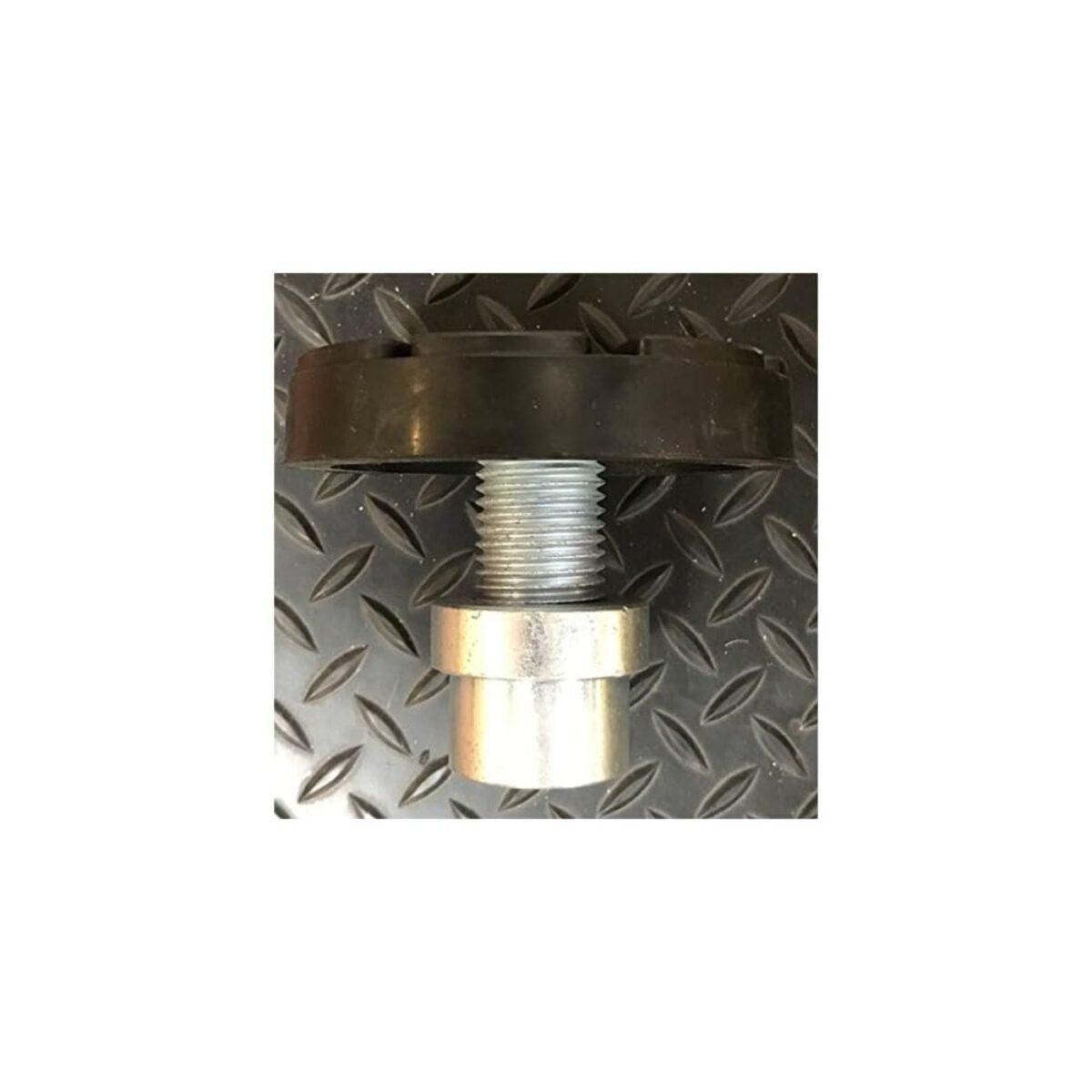

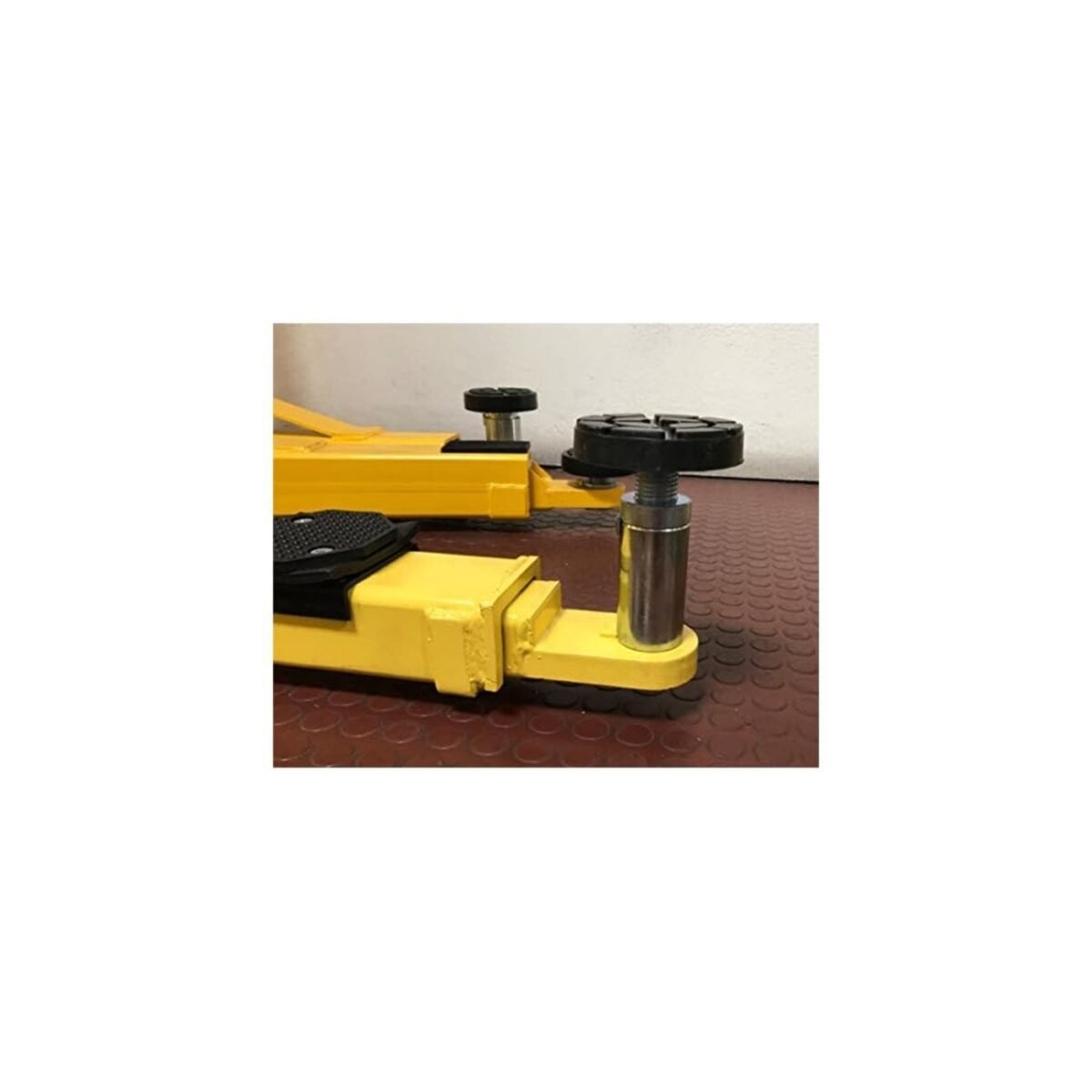

- Low profile ‘drop-in’ swivel pads with 1-1/2” adjustable height
- Reduced overall width with front-side power unit mounting
- Internal hose routing with integrated hose guards
- Rubber door guards to protect vehicle doors
Materials & care
Constructed with durable steel columns (5 mm), carriage (5 mm), and lifting arms (6 mm) featuring heavy-duty leaf chains and steel pulleys. Periodically inspect equalization cables, hydraulic lines, and moving mechanical components for optimal performance.
