Atlas PV12PX 2-Post Lift 979.8kg
Description
The Atlas PV12PX is a heavy-duty commercial-grade two-post lift engineered to service passenger cars, commercial vans, and long-wheelbase trucks. Built with high-strength 6mm steel columns, symmetric arms, and dual direct-drive cylinders, it delivers reliable 5,443.1 kg lifting capacity for demanding shop environments.
Featuring adjustable overall height settings, extra-wide drive-thru clearance, and automatic arm restraints, this lift ensures exceptional versatility and safety. The package includes durable carriage door guards, a padded overhead shut-off bar, and a comprehensive 12-piece truck adapter kit to accommodate diverse vehicle frames.
Key Features
| Brand | Atlas |
| Model | PV12PX |
| Product Type | Two-Post Car Lift |
| Lifting Capacity | 5,443.1 kg |
| Overall Height | 419.1 cm or 449.6 cm |
| Special Low Height | 381 cm (Requires Additional Cables) |
| Overall Floor Width | 388.6 cm |
| Outside Column to Outside Column | 353.4 cm |
| Maximum Lift Height (No Adapters) | 183.5 cm |
| Maximum Lift Height (With Adapters) | 205.7 cm |
| Minimum Arm Height | 11.4 cm |
| Inside Column Width | 312.4 cm |
| Drive-Thru Clearance | 276.9 cm |
| Column Dimensions | 19.1 cm x 36.8 cm |
| Column Steel Thickness | 6mm |
| Baseplate Dimensions | 44.5 cm x 52.1 cm |
| Electrical Requirements | 220V, Single Phase (30 Amp Breaker Recommended) |
| Hydraulic Fluid Requirement | 11.4 - 18.9 L AW32/AW46 (Not Included) |
| Adapter Heights | 4 at 3.2 cm, 4 at 6.4 cm, 4 at 10.2 cm |
| Adapter Peg Size | 3.8 cm |
| Concrete Requirement | Minimum 15.2 cm thick, 3000 psi rating |
| Shipping Weight | 979.8 kg |
Highlights
- 12,000 lb. Capacity – Designed to lift heavy-duty vehicles, including trucks and large SUVs.
- Extra Tall & Extra Wide – Provides ample space for larger vehicles and easier access.
- Commercial Grade – Built for professional use with high-strength steel construction.
- Adjustable Height Settings – 165 inches (13′ 9″) or 177 inches (14′ 9″) standard options. Special low height setting of 150 inches (12′ 6″) requires additional cables.
- Symmetric Arms – Ensures balanced lifting for various vehicle types.

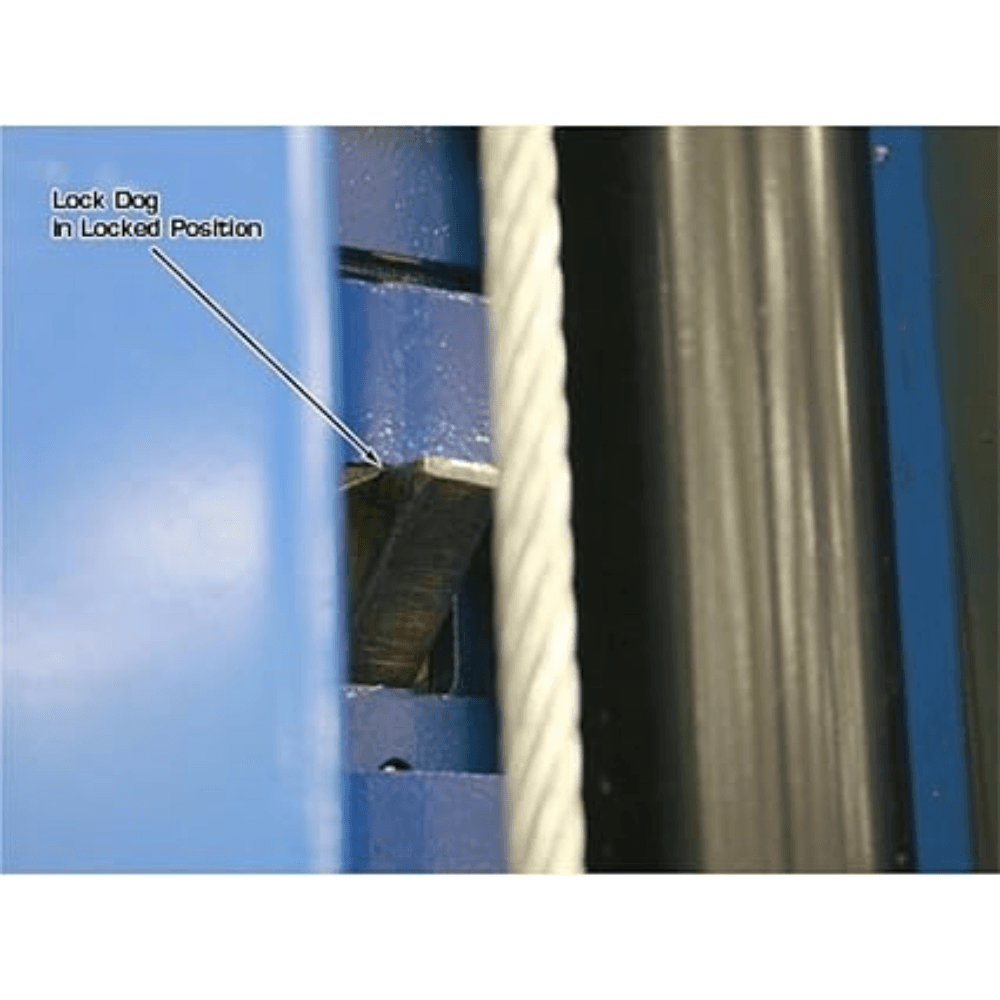

- Automatic Arm Restraints – Enhances safety by securing the arms in place.
- Padded Shut-Off Bar – Prevents damage by stopping the lift if the vehicle touches the top.
- Door Guards on Carriages – Protects vehicle doors from accidental contact with the lift.

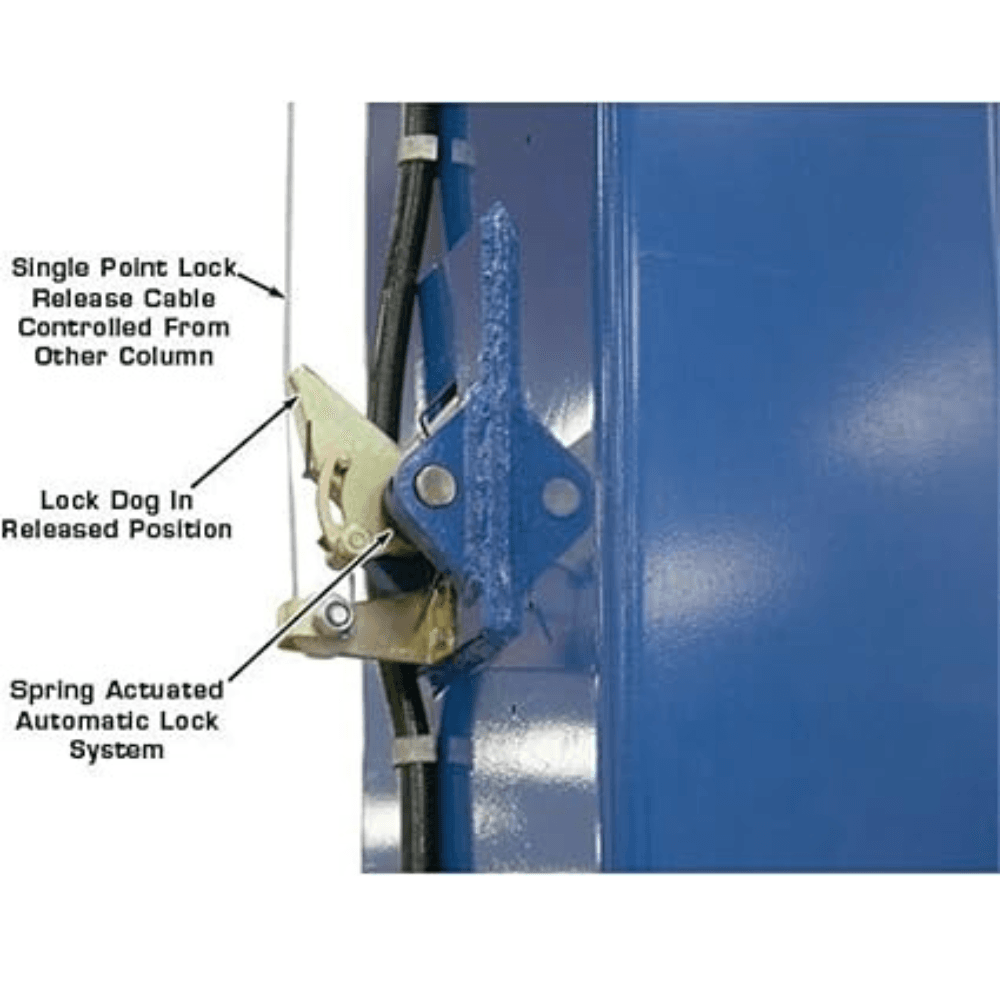

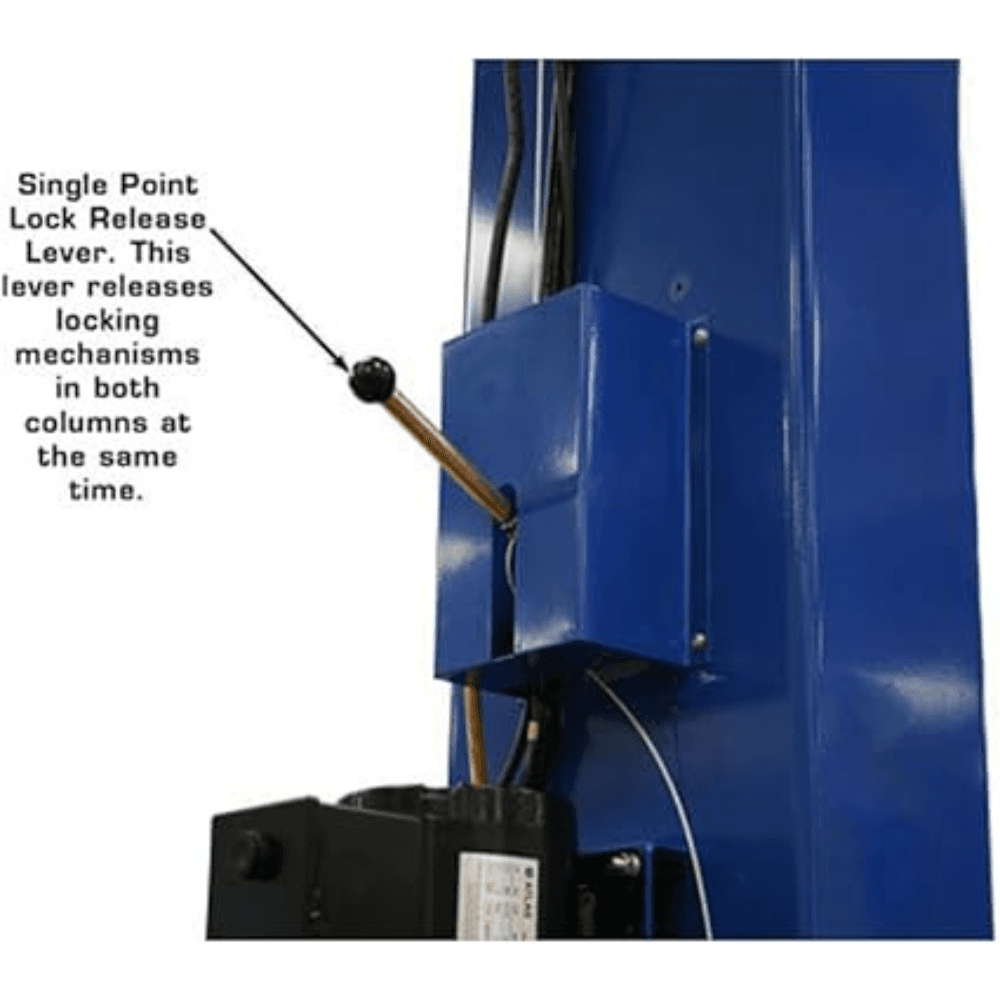

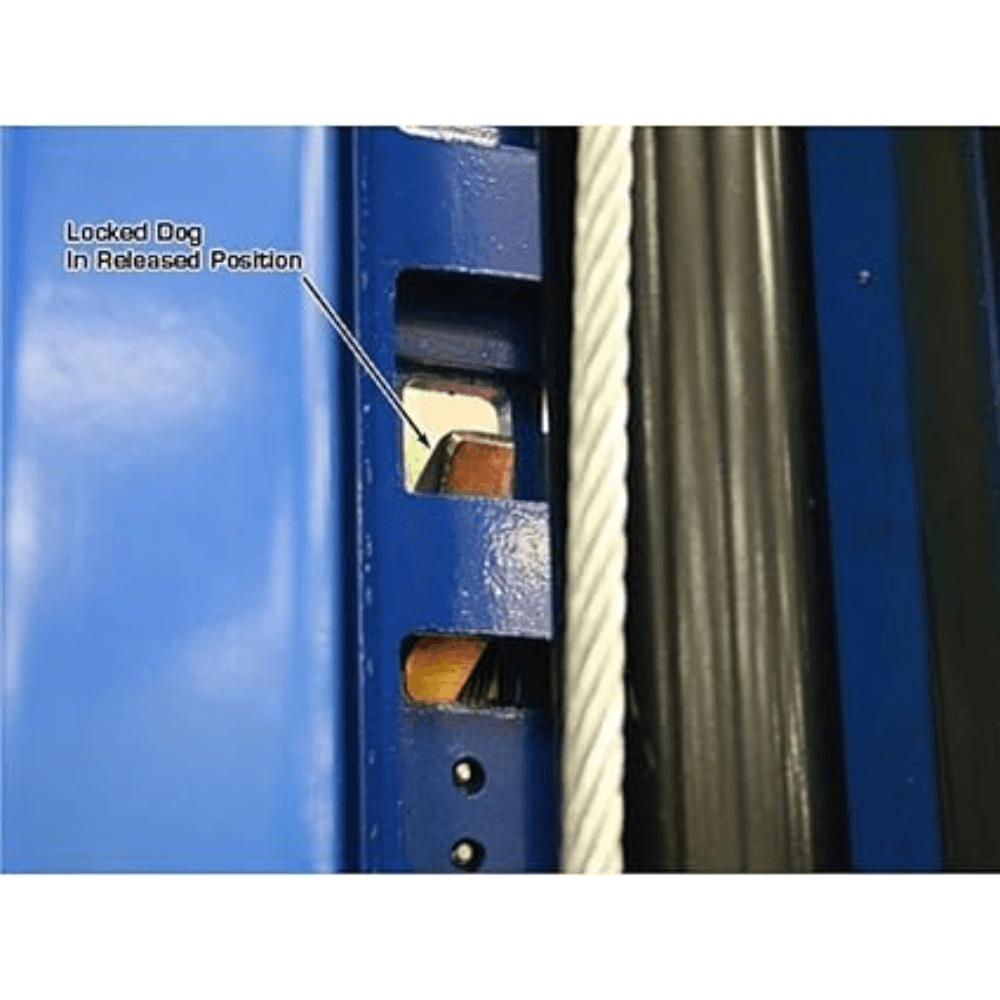

- Single Point Lock Release – Safety lock release system for operation.

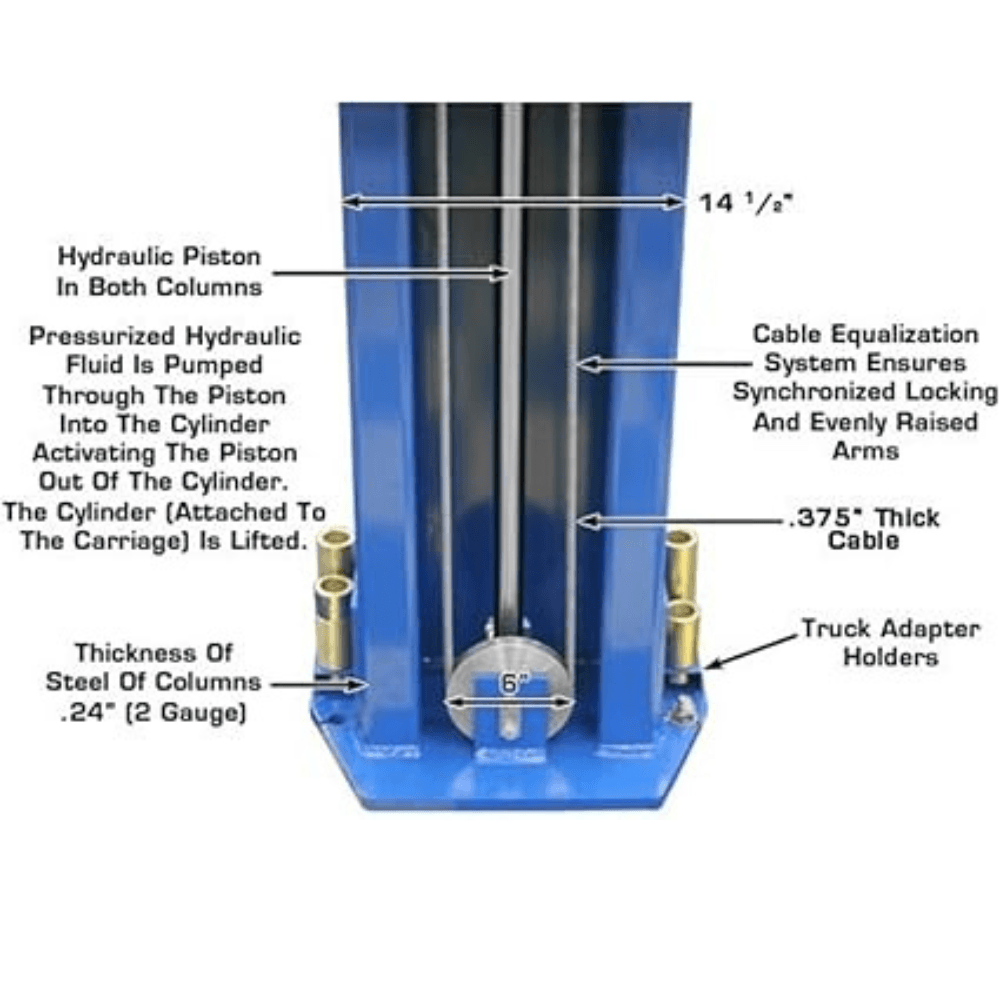

- Dual Direct-Drive Cylinders – Provides smooth and efficient lifting power.
- Powder Coat Finish – Increases durability and resistance to rust and wear.
- 12-Piece Truck Adapter Set – Allows for lifting of vehicles with different frame designs.
- Mounting Hardware Included – Ensures secure installation.
- Warranty – 5 years structural, 2 years hydraulic (parts only).
Compatibility
Compatible with passenger vehicles, SUVs, vans, box trucks, and long-wheelbase commercial vehicles up to 5,443.1 kg.
What's included
- Atlas PV12PX Two-Post Lift Assembly
- 12-Piece Truck Adapter Set (4 x 3.2 cm, 4 x 6.4 cm, 4 x 10.2 cm)
- Mounting Hardware
