Atlas Garage Pro 8000 Four-Post Lift 780.2kg
Description

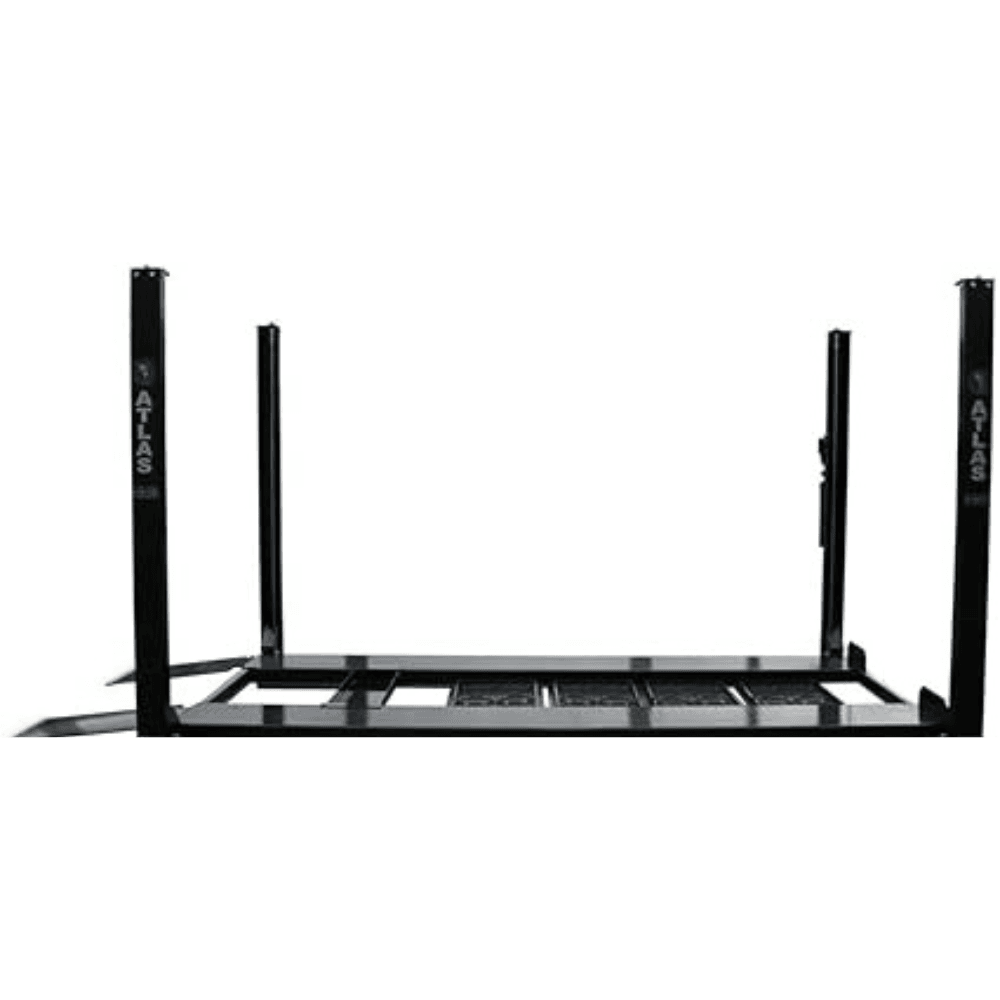

The Atlas Garage Pro 8000 is a heavy-duty four-post storage and service lift engineered with a 3,628.7 kg capacity to accommodate cars, light trucks, and SUVs. Designed with a lock ladder column structure and a double-lock safety system with a single-point release, it delivers secure lifting alongside convenient operation for maintenance and space optimization.
Constructed with durable 6-gauge steel finished in an Atlas powder coat, this freestanding unit operates without requiring floor anchors. It includes portable caster wheels with polyurethane construction, steel approach ramps, plastic drip trays, and a steel jack tray for complete garage utility.
Key Features
| Brand | Atlas |
| Model | Garage Pro 8000 |
| Lifting Capacity | 3,628.7 kg |
| Lifting Height to Top of Runway | 182.9 cm |
| Clearance Under Runways | 171.5 cm |
| Height of Columns | 210.8 cm |
| Overall Width (Without Motor) | 265.1 cm |
| Overall Width (With Motor) | 289.6 cm |
| Overall Length (With Approach Ramps) | 527.1 cm |
| Overall Length (Without Approach Ramps) | 445.8 cm |
| Approach Ramp Length | 94 cm |
| Runway Width | 54 cm |
| Runway Length | 420.4 cm |
| Runway Thickness | 11.4 cm |
| Width Between Runways | 94.9 cm |
| Width Between Runway Rails | 80.6 cm |
| Outside Runway to Outside Runway | 189.9 cm |
| Clearance Between Columns | 240 cm |
| Length Between Columns | 400.1 cm |
| Base of Column | 25.7 cm x 29.8 cm |
| Maximum Wheel Base | 389.9 cm |
| Drive-Thru Width | 204.5 cm |
| Cable Diameter | 8.9 mm |
| Steel Gauge | 6 Gauge (4.75 mm) |
| Motor | 110V Electric Operation (30 Amp Breaker Required) |
| Shipping Weight | 780.2 kg |
| Oil Requirement | 11.4 - 18.9 L AW32/AW46 |
Highlights
- 8,000 lb. Lifting Capacity – Supports cars, light trucks, and SUVs.

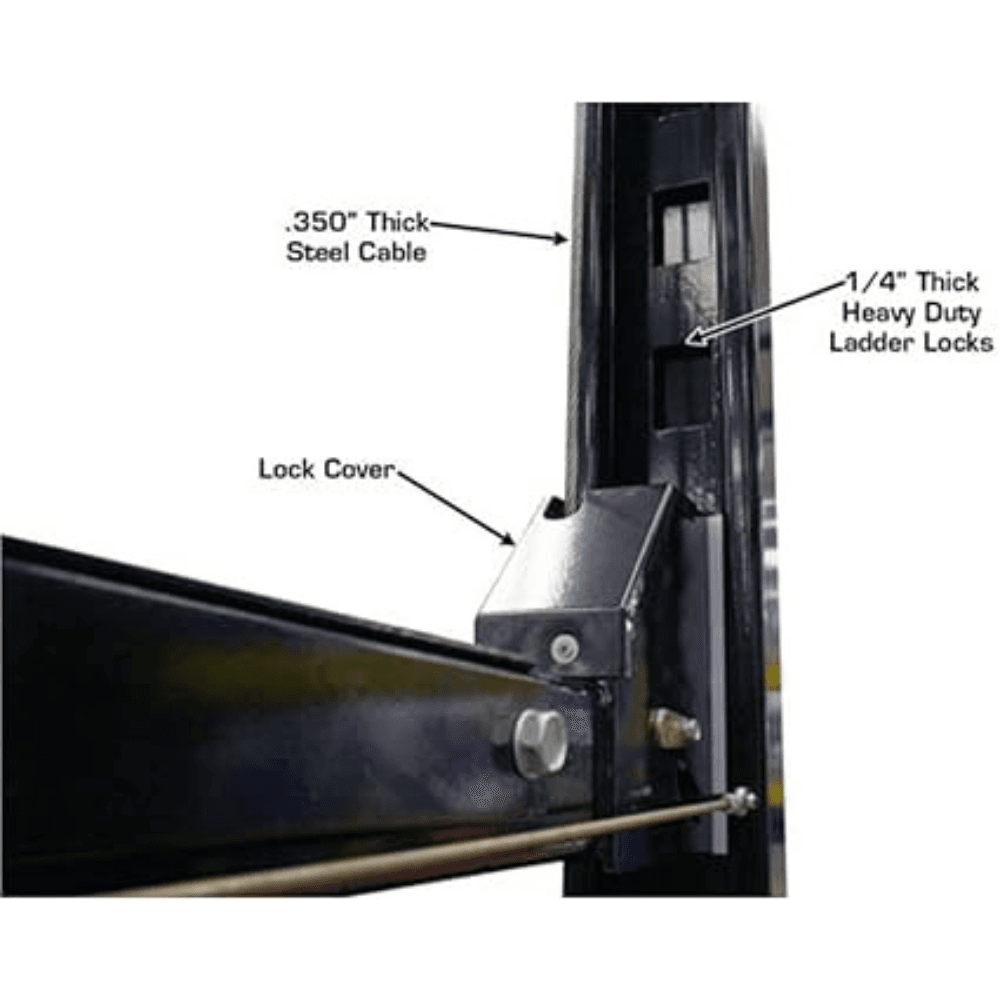

- Lock Ladder Column Design – Provides infinite runway locking positions. Allows height adjustment to accommodate any vehicle.
- Double-Lock Safety System – Adds an extra level of security.

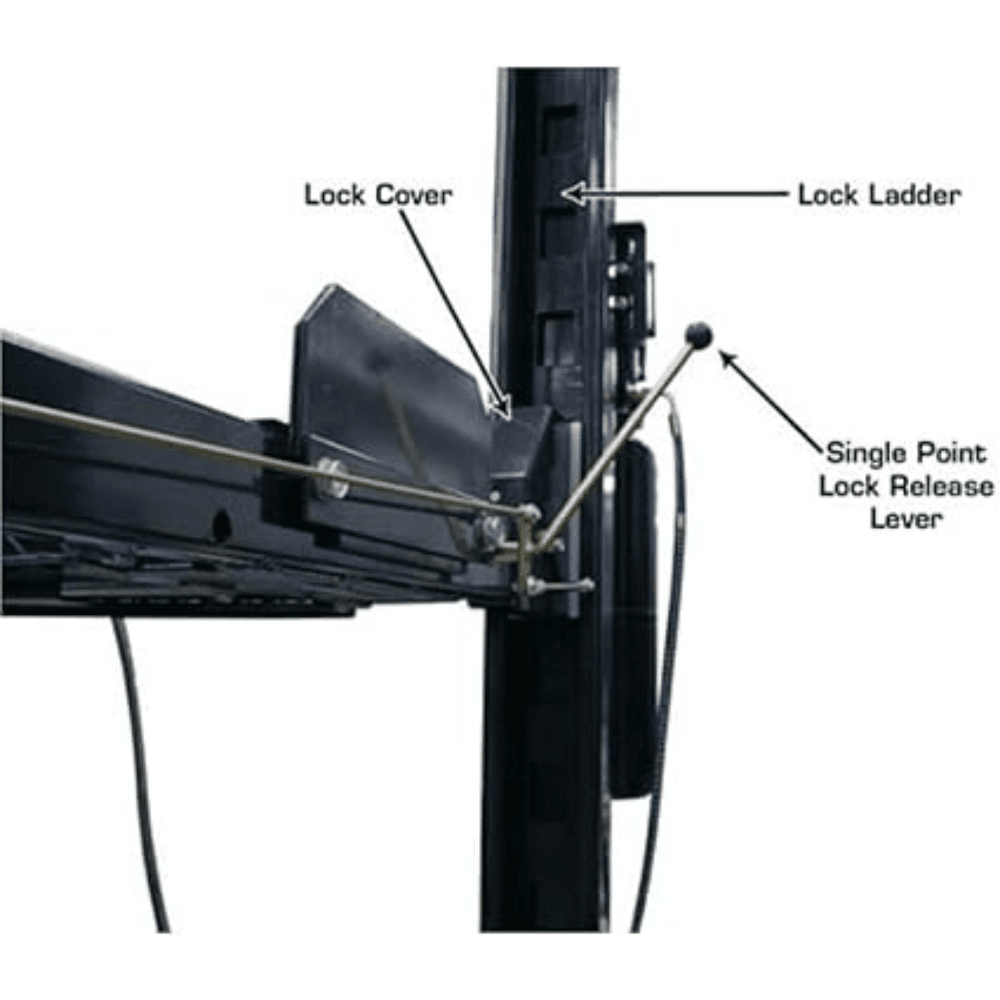

- Single-Point Lock Release – Simplifies operation and safety lock disengagement.

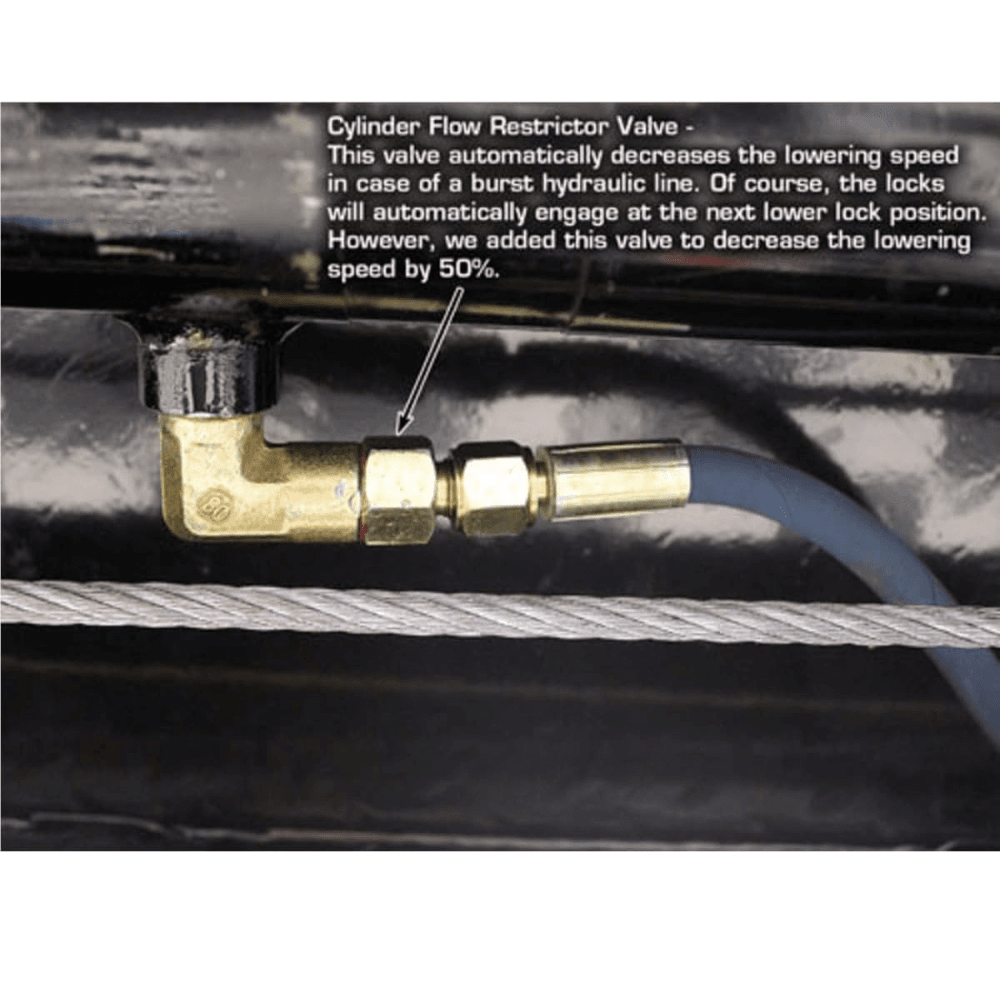

- Flow Restrictor in Hydraulic System – Ensures controlled lowering for safety.

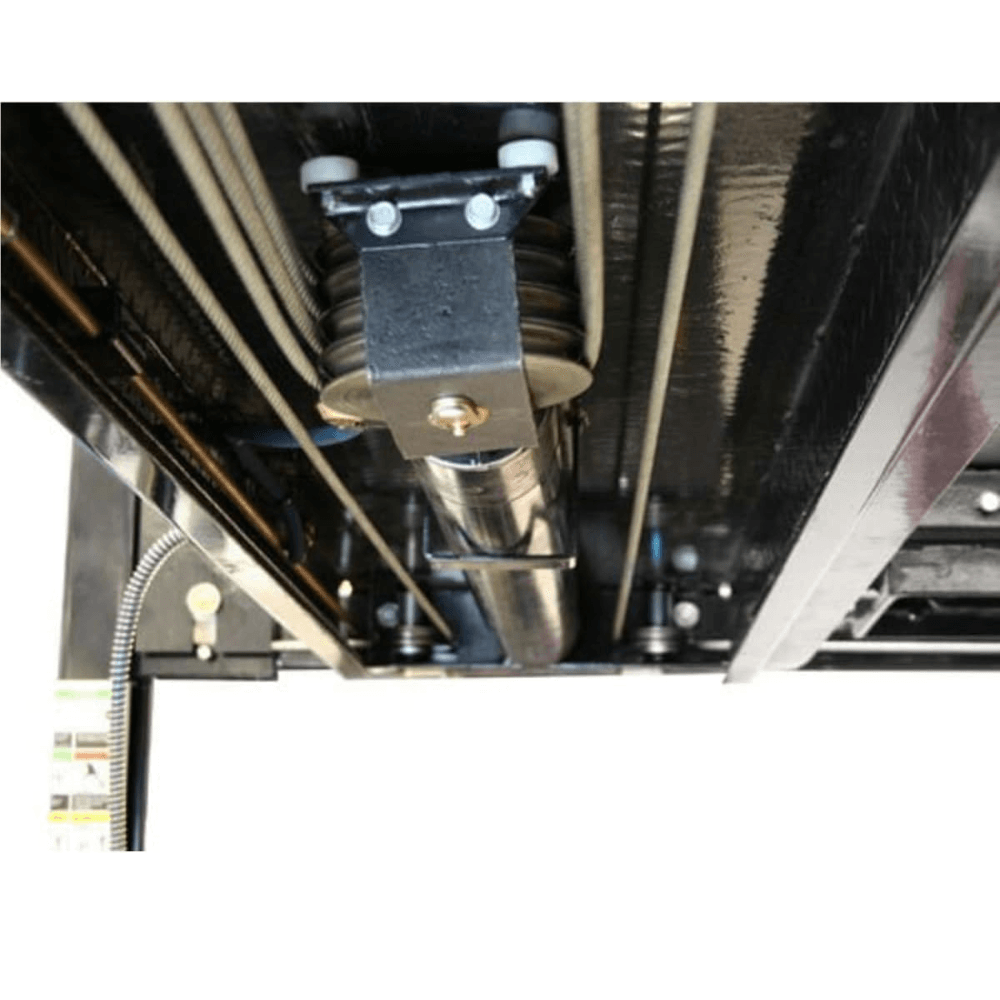

- Zerk Fittings for Pulley Greasing – Enhances longevity and smooth operation.
- Caster Kit with Polyurethane Wheels (Included) – Allows movement across floors.
- Does Not Need to Be Anchored – Offers flexibility for placement and portability.
- Easy Installation – Can be assembled in about four hours by two people.
- Includes Accessories for Versatility – Steel approach ramps for vehicle loading; three plastic drip trays to catch fluids; steel jack tray for use with bottle jacks; rubber wheel chocks for additional security.
- Atlas Powder Coat Finish – Protects against corrosion and wear.
- 2-Year Structural & 1-Year Hydraulic Warranty – Ensures long-term reliability.
Compatibility
Compatible with standard passenger cars, light trucks, and SUVs with a maximum wheelbase up to 389.9 cm and a drive-thru width up to 204.5 cm.
What's included
- Atlas Garage Pro 8000 Four-Post Lift
- Caster kit with polyurethane wheels
- Steel approach ramps
- 3 plastic drip trays
- Steel jack tray
- Rubber wheel chocks
